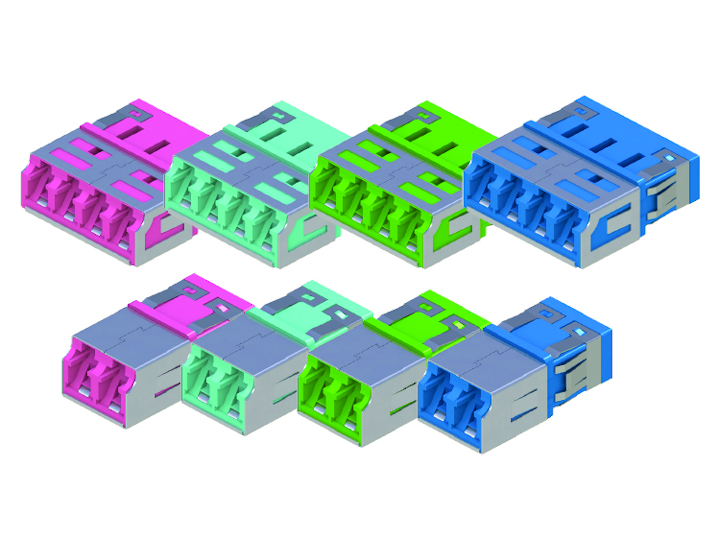

All in One LC Adapter Series

Shared User Pr61397f12fcd448c6a95039f16d885990
Sanwa’s All in One LC Adapters meet the needs of applications where the adapter must install tightly and be resistant to vibration. Designed with metal plates on all sides of the adapter that expand to tightly fit into the panel, these adapters provide a secure, vibration-resistant fit.

The All in One LC Adapters come with dust protection shutters, which are designed to cover the entire coupling hole. These built-in shutters are automatically opened as the LC connector is inserted, and closed as it is extracted, providing a barrier against dust and protecting workers’ eyes from laser exposure.


Insertion loss (typical); 0.2dB or less
IP 5x
No Dust Cap required on front side
Laser protection, white translucent shutter available
UL94V-0 flammability grade
RoHS and REACH compliant
IEC61754-20, TIA/EIA 604-10A, GR-326-CORE compliant
