Making a power play for small cells, Wi-Fi, and HD security-camera access

Having available power is often taken for granted by network and communications engineers deploying access-network devices - until it suddenly becomes a significant issue.

1409lwfeat01f1

Having available power is often taken for granted by network and communications engineers deploying access-network devices - until it suddenly becomes a significant issue.

By RYAN CHAPPELL

I recall that in my early undergraduate electrical engineering days (circa 1992, late Cretaceous period) the "en vogue" electrical engineering studies were primarily related to communications networks, advanced microprocessing, medical applications, and such. Power engineering was considered an ancient science - dull and dreary.

Only a minority of aspiring young electrical engineers sought this concentration. Had we known then what we see today - a strong need for cleaner energy, the latest developments in cheap DC-to-DC voltage conversion, alternative energy vehicles - perhaps many of us would have chosen a different career path.

Despite these current topics, the humble field of electrical power is still often overlooked. In the communications world (especially the optical communications world), this issue rears its immutable head today in the deployment of network access devices such as small cells, Wi-Fi access points, and HD security cameras.

We need power where?

The challenge of how to get power to devices mounted on lamp posts, tops and sides of buildings, security fences, and many other unusual places can often be the very last thing on an engineer's mind. Take the case of small cells. What's the first thing any good 4G-network planning engineer should ask? Probably, "What does my 4G coverage map need to look like?"

That makes perfect sense. So we take a nice map, position every small-cell device for maximal 4G coverage - ensuring coverage of all those hard-to-reach places in between buildings - and everything looks great. But then a site survey is conducted and everyone realizes there's no electrical power in the middle of that public park as well as several other places.

Of course, electrical power may be nicely available from the local utility company for the small cells to be positioned on lamp posts, except the utility wants a power meter placed on every device. What if negotiations to tap power from a strategic apartment complex suddenly go south when the building owner refuses to allow access to the building because of tenant complaints? These are real life examples drawn from network access deployments over the past year.

Hybrid optical/copper cables

One way to solve the challenge of delivering power to odd locations is to use the same cable that connects the optical fiber, eliminating the reliance on local power availability near the device. So-called hybrid optical/copper cables are not new - several designs have been on the market for 20 years or longer. If that's the case, then why haven't such hybrid cables been sold in large volumes until now?

It seems logical that combining power and optical communications delivery into one cable should provide time and cost savings to network providers. Isn't that, after all, what power-over-Ethernet (PoE) technology is really all about - combining power and communications under one sheath? There are two reasons that until recently these cables haven't taken the market by storm.

First, the industry's hybrid cables up to now have proven very expensive, large in size, and time-consuming to terminate due to very complex cable designs. Second, getting power through these cables and accessing it from the other end of the device required significant engineering expertise. These systems have been difficult to deploy, and there are no "off the shelf" options generally available.

1409lwfeat01f1

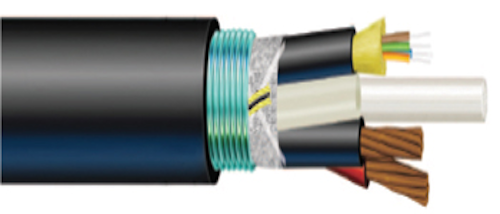

FIGURE 1. Common hybrid cable consisting of loose tube fiber and conductors residing in the buffer tubes.

Let's take a look at the cable designs for hybrid optical/copper cables. Until recently, common hybrid cables typically used some type of loose tube optical-cable design in which one or more buffer tubes were replaced with conductors (see Figure 1). A less common design, referred to as a composite design, involved taking individual optical and copper cables and bonding them together in a "figure eight" arrangement (see Figure 2) - more specifically, two side-by-side cables possibly bonded together by a third plastic sheath.

1409lwfeat01f2
FIGURE 2. Early composite hybrid optical/copper designs consisted of individual fiber and copper cables bonded together in a "figure eight."

Hybrid-cable challenges

These cable designs are complicated in how the cables are manufactured and how they're accessed for fiber splicing and copper termination. Also, making these kinds of cables requires three to six separate manufacturing steps, depending on the cable design, increasing the cost of the cable.

Accessing a typical loose tube style of hybrid cable requires several steps as well as specific optical- and copper-cable access tools. A survey of several customers with experience in deploying such cables reveals that it typically takes a minimum of two or three minutes to terminate them. In some cases, the amount of time could be as long as five minutes or more to prepare one cable end.

That amount of time may have been acceptable in the past for unique projects where only a few cables were deployed. But considering the current massive deployments of small cells, Wi-Fi access points, HD security cameras, and other access devices, the high cost and time constraints of the past are totally unacceptable.

For hybrid cables to become viable options for these markets, the cable must have characteristics resembling fiber to the home (FTTH) optical drop cable. The cable must be cost-effective and fast to deploy. It's most desirable for such a cable design to be simple, ideally produced in a single manufacturing step, and able to be terminated in well under a minute.

But having a great hybrid cable is not necessarily enough. The majority of providers seeking to deploy hybrid cable don't understand the challenges involved. For instance, there are voltage drop penalties over distance; electrical protection may be needed, such as surge protection or protection against lightning strikes or cable cuts.

Providers must also know how to convert from an optical signal to an electrical or PoE input at distances greater than a kilometer. Typically, most access devices such as small cells, Wi-Fi access points, and security cameras are not designed for direct fiber input. Therefore, media conversion is often necessary. Additionally, what type of power supply should be used?

There are lots of considerations beyond the cable itself. In short, every hybrid optical/electrical deployment of the past has required a unique electrical engineering design because no off the shelf options were available.

Backing it up

Another consideration is battery backup or uninterruptible power supply (UPS). It's highly desirable to have emergency battery backup for small cells to handle emergency phone service. But backup power for security cameras, critical Wi-Fi applications, and other access devices may be equally important.

But if we truly envision millions of these access devices deployed globally in the coming years, then deploying and supporting millions of individual batteries probably isn't the most effective strategy. Cost, environmental concerns, maintenance, and other such issues would seem to discount that approach as a viable alternative.

1409lwfeat01f3
FIGURE 3. In an airport environment, hybrid optical/copper cabling can deliver power and communications from one or more centralized locations.

A centralized battery backup system is a much better alternative. Delivering power via hybrid cabling to many devices from a central location (perhaps in a star network arrangement) as a UPS service could support this approach (see Figure 3). Such a central location could be an outdoor distribution cabinet, a telecom closet, a macro base-station location, etc. Any location that has access to power and the optical network could be a potentially viable alternative for such a network architecture (see Figure 4).

1409lwfeat01f4
FIGURE 4. Any location that has access to power and the optical network could be a potentially viable alternative for a centralized network architecture.

Another consideration is the type of power supply to use for powering the cable and how to safely and properly disseminate power off the other end to ensure delivery of the right energy levels to the network access devices. For the power supply, there are three basic choices to consider: -48-V DC NEC Class 2- or SELV-compliant power supplies, 120-/240-V AC systems, and 380-/400-V DC Microgrid systems.

Power-supply comparison

The -48-V systems that remain within low power levels to meet electrical codes (such as NEC Class 2 and SLV) are desirable since they're designed to keep energy levels low and as safe as possible. These systems can effectively handle power levels below 100 W, so electricians are not required for the installation. Readily available from multiple vendors, -48-V DC power supplies are a proven technology.

Because these systems keep power levels low, the drawback is that the inherent distances and power levels they can support are limited. Also, since the voltage level is so low, a higher electrical current is needed in the cable to drive power to devices. Higher current in the cable means more energy loss from heat caused by the electrical resistance in the copper. Still, these lower-voltage DC systems are typically the best.

The 120-/240-V AC systems are also a proven technology, with standards in place for many years. These systems can support higher power and longer distances than -48-V DC systems; however, they require qualified electricians for installation. Other drawbacks include the inherently less efficient power transmission of AC systems due to capacitive and inductive effects, added difficulties in integrating UPS battery backup (requiring more equipment), and the requirement for AC transformers and additional AC-to-DC rectification circuits. Therefore, in most cases AC systems are more expensive to deploy than -48-V DC systems.

The 380-/400-V DC Microgrid approach promises a new, more effective way to handle higher power needs without the inherent inefficiencies of 120-/240-V AC systems. Several systems were recently deployed by major institutions around the world. Standards development is underway through the efforts of the EMerge Alliance (www.emergealliance.org/).

While the expectation is that this method will be overall less expensive, easier to connect, easier to maintain, and more energy efficient than AC systems, it will still require qualified electricians to install. For high power and long-distance applications where low-voltage NEC Class electrical systems will not work, this method may be a good future alternative.

How much and how far?

Another important question to address is how much power can be delivered and at what distance to the network access device (small cells, Wi-Fi access points, HD security cameras, etc.)? With all power systems (AC or DC), the fundamental problem of voltage drop over distance must be addressed. Until now, an electrical engineering calculation was typically performed for every cable run to ensure the voltage range delivered to the device was within the acceptable range. With modern DC/DC conversion technology, devices are now emerging that eliminate the need for this engineering.

Properly designed DC/DC conversion devices can take in a wide range of voltage and deliver exactly what's required to power the device, whether it be a 12-V HD security camera or 48-V picocell. Such new devices also incorporate the necessary types of carrier grade electrical protection to protect against lightning strikes, EMI surges, cable cutting, etc. These new devices promise to reduce engineering and make the systems install like "a long extension cord."

Power questions answered

Deploying hybrid cable systems to power today's network access devices should follow the same product life cycle typically seen in the FTTx industry. In the early 2000s when FTTx was just beginning, there were a multitude of unanswered questions, a lack of suitable products, and high deployment costs. Today, these issues have been largely addressed through mature product systems provided by multiple vendors.

With the coming proliferation of network access devices, driven by 4G/5G, security, "smart homes," and a host of other applications, there's a strong need for robust, off the shelf systems to combine power and communications into single cables. Speed of deployment, cost, safety, security, and other challenges must be taken into account by solution developers to remove these headaches for network designers.
