Duobinary modulation for optical systems

Th 211925

By Hari Shankar

Optical systems by and large use non-return-to-zero (NRZ) modulation. While NRZ modulation is suitable for long-haul systems in which the dispersion of the singlemode fiber is compensated for by another fiber with negative dispersion, it is not the best choice for uncompensated singlemode fibers.Th 211925

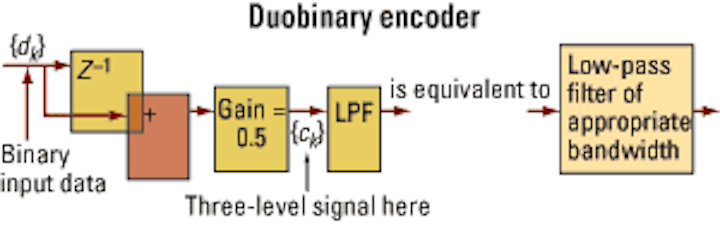

Figure 1. Designers can create a duobinary encoder using a two-tap FIR filter and a low-pass filter (left). Alternatively, the filters may be combined into a single analog filter (right).

Duobinary modulation turns out to be a much better choice in this case; it is more resilient to dispersion and is also reasonably simple to implement. This paper explains the basics of duobinary modulation and presents lab measurements that clearly show the format’s superiority to NRZ modulation for an uncompensated optical fiber channel.

Duobinary modulation is a scheme for transmitting R bits/sec using less than R/2 Hz of bandwidth.1,2 Nyquist’s result tells us that to transmit R bits/sec with no intersymbol interference (ISI), the minimum bandwidth required of the transmitted pulse is R/2 Hz. This result implies that duobinary pulses will have ISI. However, this ISI is introduced in a controlled manner so that it can be subtracted out to recover the original values.

Let the transmitted signal beTh 212001

Here, {dk} are the data bits, q(t) is the transmitted pulse, and T = 1/R is the bit period. The pulse q(t) is usually chosen such that there is no ISI at the sampling instances (t + kT, k + 0,±1,... , are the sampling instances):Th 212002

NRZ is one such scheme and requires a bandwidth of R Hz to transmit R bits/sec (this is twice as large as the Nyquist bandwidth of R/2 Hz).

The simplest duobinary scheme transmits pulses with ISI as follows:Th 212003

We then see from (0.1) and (0.3) that at the sampling instance kT, the receiver does not recover the data bit dk, but rather dk-1 + dk). However, this scheme allows for pulses with a smaller bandwidth. By allowing some ISI, the transmitted pulse q(t) can be made longer in the time domain, and hence its spectrum becomes narrower in the frequency domain. With a narrower spectrum, there are also fewer distortion effects of the channel. This outcome is one of the reasons why duo­binary modulation is resilient to dispersion.

One way of generating duobinary signals is to digitally filter the data bits with a two-tap finite impulse response (FIR) filter with equal weights and then low-pass filter the resulting signal to obtain the analog waveform with the property in (0.3) (see Figure 1, left). When the input to the FIR filter is binary (let these binary values be -1 and 1), the output can take on one of three values: 0.5*(-1 + -1) = -1; -1 + 1 = 0; or 0.5*(1 + 1) = 1. Therefore, the duobinary signal is a three-level signal.

An important property of the three-value sequence at the output of the FIR filter is that it is a correlated signal; thus, all possible sequences of the three values cannot occur. For example, the output sequence of the FIR filter cannot contain a 1 followed by a -1, or a -1 followed by a 1; a 1 and a -1 will always have a 0 between them. Similarly, the combinations {1 0 1} and {-1 0 -1} also can never occur at the output of the FIR filter; only a {-1 0 1} or a {1 0 -1} can occur. As will be explained later, this sequence is another reason why duobinary modulation is resilient to dispersion.

On a final note, the FIR filter and the low-pass filter can be combined into a single analog filter for ease of implementation (see Figure 1, right). The two-tap FIR filter is, after all, a simple low-pass digital filter. For a 10-Gbit/sec data stream, a good filter that combines the functions of the FIR filter and the analog filter is a 2.8-GHz Bessel filter.

The ISI introduced at the transmitter can be unraveled at the receiver by differential decoding.2 At each sampling instance kT, the receiver assumes the value of xk + (dk + dk-1), where xk + x(kT) and x(t) satisfies (0.3). If the previous decision at the output of the receiver is dˆk-1, this decision can be subtracted from the sampled value to obtain dˆk:Th 212004

However, a single error at the receiver will propagate forever, causing a catastrophic decoding error. To avoid this catastrophic error propagation, it is better to move this differential decoding to the transmitter and differentially precode the data. The data bits dk are differentially encoded as follows:Th 212005

The transmitted signal is nowTh 212006

with q(t) satisfying (0.3). Thus, at the sampling instance kT, the receiver samples the value ckck-1= ck-1 dk ck-1= dk.

One circuit that can be used to implement a differential encoder is an exclusive-OR (XOR) gate. However, it can be difficult to implement the 1-bit delay in the feedback path at high data rates such as 10 Gbits/sec.Th 211930

Figure 2. Unlike in NRZ modulation, the E fields of dispersed duobinary pulses cancel, reducing ISI for the 0.

Another circuit that does not involve delay in the feedback path is a divide-by-2 counter, which has a clock gated with the data. When the data is high, the counter changes state, which is equivalent to adding a 1 modulo 2. When the data is low, the counter state remains the same, which is equivalent to adding a 0 modulo 2.

The final step is to modulate the light with the three-level duobinary signal, which implies a three-level optical signal. This result is achieved with a Mach-Zehnder (MZ) modulator biased at its null point. With a zero input, no light is transmitted, but the +1 and -1 inputs are transmitted as +E and -E electric fields.4,5 While this is a three-level signal in terms of the electric field, it is a two-level signal in terms of optical power. This choice significantly reduces the complexity of the receiver (the first optical duobinary systems used a mapping that requires three levels of optical power).3 One of the key components is a driver that can produce a voltage swing of 2*Vπ volts at high data rates such as 10 Gbits/sec in order to drive the MZ modulator.Th 211932

Figure 3. The inverter in a duobinary transmitter may be placed at the receiver or the transmitter.

The combination of the duobinary encoder and the above mapping to electric fields helps further reduce the effects of dispersion in the fiber.5 As the pulses travel down the fiber, they spread out in time owing to dispersion. In an NRZ scheme, a data sequence of {1 0 1} is mapped onto the optical domain as {+E 0 +E}. In the encoded duobinary sequence, a {1 0 1} sequence cannot occur, but a {1 0 -1} does occur, which is mapped to {+E 0 -E} in the optical domain. The effect of dispersion in the two cases is shown in Figure 2, which depicts why the resulting dispersion is less in the case of duobinary modulation.

The same receiver that is used for an NRZ modulation scheme can be used for duobinary modulation. The power detector squares the electric field to detect power; thus, the +E and -E outputs of the fiber get mapped to the same power level and are detected as logical 1s.

The complete duobinary transmitter is shown in Figure 3. An inverter is added at the input to the differential encoder; without it, the data at the receiver is inverted. This inverter can be placed either at the receiver or the transmitter. Since signal paths are usually differential, the inverter is not an additional piece of hardware that is required but instead can be implemented by reversing the differential lines from the data source to the AND gate.

Measurements were carried out to determine the performance of duobinary modulation and compare it with that of NRZ modulation at 10 Gbits/sec. The measurements were made at 1550 nm over standard singlemode fiber. This fiber has a dispersion of 17 psec/nm/km at this wavelength and an attenuation of 0.2 dB/km.Th 211933

Figure 4. In this test setup, an optical amplifier was added after the Mach-Zehnder modulator to compensate for the loss in the modulator and to ensure efficient power for 120 km of reach.

The experimental setup is depicted in Figure 4. An optical amplifier was added after the MZ modulator to compensate for the loss in the MZ modulator and launch sufficient power to transmit through 120 km of fiber. The power launched into the fiber was kept at a level low enough to avoid any self-phase modulation ­effects.Th 211934

Figure 5. These BERs clearly show the superior reach duobinary provides versus NRZ transmission.

The results are shown in Figure 5 and Figure 6. At a BER of 1-10, duobinary has a 1.5-dB gain over NRZ at 80 km and a 2-dB gain at 100 km of fiber. At 120 km of fiber, duobinary can still operate at a BER of 1-10 but NRZ cannot be used anymore. The received eye is shown in Figure 6, which clearly shows an open eye for duobinary after 120 km and a completely closed eye for NRZ.Th 211935

Figure 6. These eye diagrams confirm the data presented in Figure 5: Although NRZ cannot accommodate 120 km of transmission, duobinary can.

An interesting property of the 27-1 PRBS sequence used (generator polynomial = 1 + x6 + x7) is that following differential encoding, it is the same PRBS sequence shifted by 6 bits. (The property that a differentially encoded PRBS sequence is a delayed version of the original sequence holds true whenever the generator polynomial is of the form 1 + xn + xn+1, n > 0, and the resulting delay between the PRBS sequence and the differentially encoded sequence is (n - 1)). Since the BERT is capable of aligning the transmitted and received data streams, the delay is of no consequence, and the step of differentially encoding the data can be eliminated.

Duobinary modulation is a much more resilient modulation scheme compared with NRZ modulation in the presence of chromatic dispersion. It is possible to extend the reach of NRZ systems from 80 to 120 km without the use of dispersion-compensating fibers. While an NRZ system is dispersion limited at 120 km, a duobinary system is power limited at this same 120-km length of singlemode fiber. The components are available today to implement such systems.

Thanks to Anjali Singh, Joe Lynch, Tom Broekaert, and others at Inphi for the lab measurements.

Hari Shankar is principal engineer at Inphi Corp. (www.inphi-corp.com).

1. A. Linder, “The Duobinary technique for High Speed Data Transmission,” IEEE Trans. Commun. and Electron., Vol. 82, pp. 214-218, 1963.

2. J. Proakis, “Digital Communications.”

3. G. May, A. Solheim, and J. Conradi, “Extended 10 Gb/s Fiber Transmission Distance at 1538 nm Using a Duobinary Receiver,” IEEE Photon. Technol. Lett., Vol. 6, No. 5, August 1997.

4. K. Yonenaga and S. Kuwano, “Dispersion Tolerant Optical Transmission System Using Duobinary Transmitter and Binary Receiver,” J. of Lightwave Technol., Vol. 15, No. 8, August 1997.Th 211936

"We couldn't agree on optical communications network standards, so we were forced to develop light speed space utility vehicles just to stay in touch."

5. T. Franck, P.B. Hansen, T.N. Nielsen, and L. Eskildsen, “Duobinary Transmitter with Low Intersymbol Interference,” IEEE Photon. Technol. Lett., Vol. 10, No. 4, April 1998.
