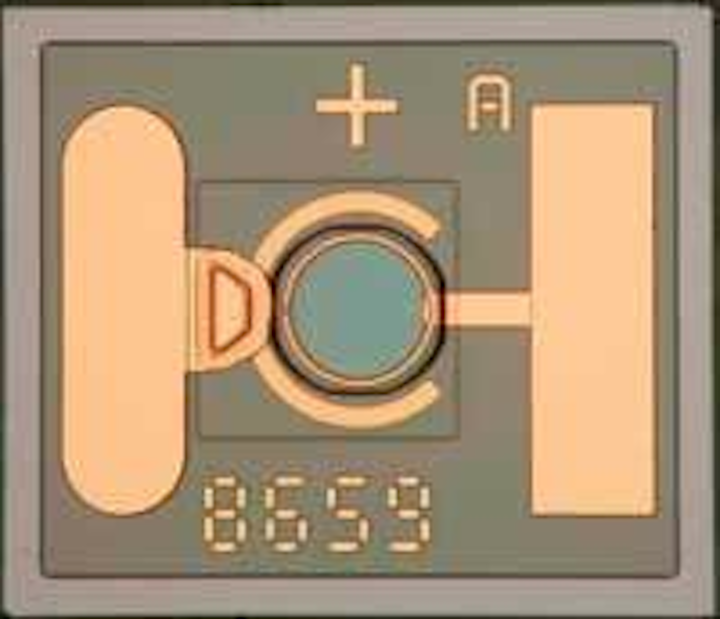

GaAs-based photodiode

PDCS70T-GS is a GaAs-based photodiode optimized for datacom and telecom applications up to 12 Gbits/sec. It has an optical aperture with a diameter of 70 μm, allowing easy coupling to multimode fibers. The photodiode has a capacitance below 240 fF at a bias of only 1.5 V, and offers high responsivity of 0.6 A/W in the wavelength region from 830 to 860 nm.

Albis Optoelectronics AG, an Enablence Technologies Inc. company, www.albisopto.comTh 255837

The Bookham 980-nm pump laser module delivers a “kink-free” power output of 750 mW. The new module, part of the LC96 portfolio, is a key component of next-generation erbium-doped fiber amplifiers (EDFAs). The increased output power of the module enables significant cost reductions in terrestrial legacy systems by reducing the number of pumps required. Similar technology from the company is being deployed in next-generation submarine applications requiring high power and extremely high reliability.

Bookham, www.bookham.comTh 255838

FutureGuide SR7.5 fiber has a minimum bend radius of 7.5 mm. In a MageTsuyo SR7.5 patch cord, the fiber is flexible and highly durable: When twisted or bent, the fiber returns to its original condition without any deformation or marking on the sheath. With the ability to be manipulated in the same way as electrical or telephone cable, the fiber can be used to deliver high-bandwidth communications directly into the home or office environment.

Fujikura Europe Ltd., www.fujikura.co.ukTh 255842

The “i-mics-coherent-2x4” has been designed as a universal reader of next-generation optical formats: QaM16, DPSK, and DQPSK. According to the company, it is the only device able to detect all the temporal phase of a modulated signal. It performs four interferences between the modulated signal and a local oscillator with 90° phase steps to compute absolute phase and amplitude of the signal. Phase difference, power difference, and synchronization between ports (0.1 psec) are the key parameters.

Kylia, www.kylia.com

The next-generation LU0977M250-2002F41A uncooled pump laser modules for EDFAs provide up to 275 mW of kink-free power. The uncooled operation greatly reduces the total power consumption of the pump laser module. The module uses the small Mini-DIL footprint of just 7×13 mm with a maximum height of 5 mm.

Lumics GmbH, www.lumics.comTh 255844

The NTL2000 widely tunable laser offers reliable performance for 10- and 40-Gbit/sec applications. Its narrow linewidth, low noise, and high SMSR are well suited for 40-Gbit systems. The ultrawide tuning range of up to 80 nm covers the C, L, C+, XL, and C+L bands in a single laser, and fast tuning speed supports emerging dynamic systems. The NTL2000 is available in a butterfly package and in the industry standard integrated tunable laser assembly (ITLA).

NeoPhotonics Corp., www.neophotonics.comTh 255845

Pirelli’s tunable products include full L-band coverage (40 nm/100 channels). At the core of the portfolio is the DTL tunable laser, delivering built-in reliability, simplified network configurations, and reduced system costs. The ITLA allows operators to integrate tunability into the network while reducing development costs and time-to-market. For further integration, the 300-pin MSA transponders available in non-return to zero (NRZ), negative-chirp NRZ, and duobinary formats extend network reach to 350+ km.

Pirelli Broadband Solutions S.p.A., www.pirellibroadband.comTh 255846

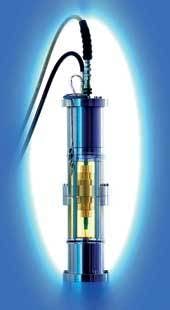

Fiber-optic rotary joints for singlemode and multimode fibers are pressure-compensated for submarine applications. Two versions are available: a fluid-filled and pressure-compensated system up to 6,000 psi/400 bar, and a pressure-tight system including dynamic seals for dry use up to 3,000 psi/200 bar. The systems can support from four to 21 optical channels, with transmission rates greater than 10 Gbits/sec at 100 rpm and less than 3.5-dB insertion loss.

SCHLEIFRING und Apparatebau GmbH, www.schleifring.com

WTD’s GPON product portfolio includes both an SFF diplexer and a 2×2-inch triplexer for the optical network terminal (ONT) side and SFF or SFP for the optical line terminal (OLT) side. The devices are compliant with ITU-T G.984.2 Class B+ and can offer 28-dB power budget and 20-dB dynamic range. The triplexer module is suitable for FTTP networks providing triple-play services. All GPON transceivers can support Digital Diagnostics Monitoring and work in the industrial temperature range.

Wuhan Telecommunication Devices Co. Ltd., www.wtd.comTh 258704

Optical channel monitor

The optical channel monitor (OCM) product line is suitable for OEMs looking to achieve the necessary cost targets for embedded DWDM monitoring for reconfigurable optical add/drop multiplexing (ROADM), multihaul, and third-party wavelength applications. The OCM is designed using proprietary tunable thin-film filters. This approach provides the ultrahigh reliability of a nonmechanical and monolithic semiconductor.

Aegis Lightwave Inc., www.aegislightwave.comTh 255847

An optical 10-Gbit/sec transmitter, which generates differential phase-shift keyed (DPSK) and on/off keyed (OOK) signals, includes a wide tuning range, pulse-pattern generator, and optical Mach-Zehnder modulators with corresponding driver amplifiers. The transmitter allows users to choose between NRZ-OOK, RZ-OOK, NRZ-DPSK, and RZ-DPSK. The device supports data rates up to 12.5 Gbits/sec and provides a tuning range of 1,528 to 1,567 nm.

Discovery Semiconductors Inc., www.chipsat.comTh 255848

The ClearSpectrum static dispersion compensator product suite features the DCMX, a passive low-insertion-loss module that allows system vendors to save on amplification costs for in-line applications, as well as the DCX, a compact athermal FBG package. Tunable offerings include the TDC, an OEM tunable dispersion compensator, and the TDCM, a complete tunable dispersion compensation module that includes an optical circulator and electronic control.

TeraXion, www.teraxion.comTh 255849

POF-based video transmission system

The VIDA 300 is the latest release of Luceat’s plastic optical fiber (POF)-based video transmission system. VIDA works with any analog CCTV camera to transmit video signals over long distances (up to 300 m). Suitable for CCTV, video surveillance, monitoring of industrial processes, and vision systems, it couples the smallest cable size with EMI immunity, 30-sec cable termination, and competitive pricing.

LUCEAT S.p.A., www.luceat.itTh 255850

Handheld OTDR

The new Noyes OFL250, a singlemode handheld optical time-domain reflectometer (OTDR), features an integrated optical power meter (OPM), laser source (OLS), and visual fault locator (VFL) in a configuration weighing only 0.8 kg (1.7 lb). With short dead zone and mid-range dynamic range performance, the OFL250 is well suited for testing optical fibers in service provider metro areas and FTTX networks. The OTDR supports automatic and manual setup, precision event analysis, and multiple-wavelength testing; it also features 12-hr battery life, internal data storage, and USB connectivity.

AFL Telecommunications, www.afltele.comTh 255851

The N7788A optical component analyzer uses proprietary technology that advances Jones-Matrix-Eigenanalysis (JME), which is the standard method for measuring polarization-mode dispersion (PMD) or differential group delay (DGD) of optical devices. The analyzer significantly reduces test time for a comprehensive characterization of optical components on manufacturing floors and R&D labs.

Agilent Technologies, Photonic Networks Division, www.agilent.comTh 255852

The N4917A optical receiver stress test system enables repeatable and complete optical receiver stress testing for receive optical subassemblies (ROSAs) and transceiver modules that operate at up to 12.5 Gbits/sec. Engineers can now reduce programming and setup time. Calibrated and complete optical jitter and stress injection is possible with the reference transmitter, software, and filter sets in combination with the J-BERT N4903A high-performance serial bit-error-rate tester (BERT) and 86100C Infiniium DCA-J.

Agilent Technologies, Digital Verification Solutions Division, www.agilent.comTh 255853

The POD-101D high-speed DSP in-line polarimeter measures the instantaneous state of polarization (SOP) and degree of polarization (DOP) of an input light beam at a sampling rate of up to 625 kilosamples/sec. High analog bandwidth (up to 1 MHz) or high sensitivity (-40 dBm) options are available. The PolaView software displays polarization state either on a Poincaré sphere window for viewing SOP traces or on an oscilloscope window for tracking polarization changes over time.

General Photonics Corp., www.generalphotonics.comTh 255854

The 920XC OTDR is used by technicians installing and maintaining fiber for cable acceptance testing and fault locating. It performs measuring loss and distance to all events on the fiber span (connectors and splices) as well as span loss. All measurement results can be transferred to a PC for documentation of cable acceptance testing. For fault locating, the OTDR’s AutoTest mode enables the user to connect the fiber and automatically get the distance to the fiber fault.

Greenlee, a Textron company, www.greenlee.comTh 255855

The FIBERCHECK can work in either continuous wave or blinking mode. With this device, breaks or imperfections in optical singlemode and multimode fibers can be quickly detected up to a distance of 3 km. It can also be used to locate single fibers inside fiber bundles. This handy, robust device is suitable for all optical fiber connectors with a 2.5- or 1.25-mm ferrule diameter.

Laser Components GmbH, www.lasercomponents.comTh 255856

The X-Bert is a new, low-cost, and space-saving production testing and field application engineering device. The modular slot design houses up to five BER modules in one 19-inch/2 frame and up to eight modules in one 19-inch frame, using optical or electrical modules.

Luceo Technologies GmbH, www.luceotec.com

A new fiber-optic fault finder (FOFF) is now available for detecting and pinpointing the locations of breaks, bends, and other problems in fiber-optic cables. The FOFF is an inexpensive OTDR-type device for continuous monitoring of fiber-optic network health, combining powerful fault detection and communication capabilities in a compact package. Remote access capability allows secure monitoring of network operating conditions using a smart phone, PDA, or computer from virtually anywhere.

OZ Optics Ltd., www.ozoptics.comTh 255857

The Polatis VST is a combined variable optical attenuator (VOA) and power meter switch tray. The VST is the first in a new class of integrated optical switching systems combining switching, attenuation, and power monitoring all in a single, compact package. The device provides physical-layer connectivity for equipment sharing of high-value test gear and automation of test sequences for manufacturing systems, maximizing equipment utilization and productivity. Its instrument-grade performance ensures fast, accurate, and repeatable measurements in an automated test environment.

Polatis Inc., www.polatis.com

The OTF-950 tunable filter provides an adjustable bandwidth from 0.28 to 6.0 nm over the entire tuning range from 1,530 to 1,570 nm. The filter is particularly suited to R&D and production testing of transmission systems with the flexibility to accommodate 10-, 40-, and 160-Gbit/sec transmission signals with one filter. The profile is flat-top shaped with high isolation and low loss. A GPIB interface with LabView drivers is standard.

Santec Europe Ltd., www.santec.comTh 255858

The PM300 Series dual-channel optical power meter allows direct ratio or differential measurements for comparing the optical power of two beams. The device can use conventional photodiodes as sensors for specialized measurements. It is compatible with all Thorlabs photodiode and thermopile power meter sensors. An additional BNC output is gain- and function-programmable and provides an analog voltage proportional to the output of one of the channels, or their difference, or ratio. The measurement resolution is 16 bits for all power ranges. The PM300 can be controlled via USB 2.0.

THORLABS GmbH, www.thorlabs.comTh 255859

FTTX/PON training CD-ROM

This new FTTX/PON computer-based training CD-ROM was developed for those designing, planning, or installing FTTX networks. The CBT allows users to learn at their own pace and features selectable chapters and interactive design exercises. Other topics include the evolution of FTTX/PON; recommendations and standards, such as GPON/GEPON; variations and architectures; WDM and switching technologies; testing and troubleshooting the ODN; OSP challenges and options; and business issues.

The Light Brigade Inc., www.lightbrigade.comTh 255860

OptiBPM is a comprehensive CAD environment used for the design of complex optical waveguides. Based on the beam propagation method (BPM) of simulating light passage through any waveguide medium, the tool allows designers to observe computer-simulated light field distribution and examine the radiation and the guided field, simultaneously. Version 9.0 incorporates generalized electrodes, a streamlined interface with ZEMAX design software, and slanted wall waveguide profiles.

Optiwave Systems Inc., www.optiwave.comTh 255861

OptSim 4.7 is the latest release of RSoft’s optical communication system design tool. New features include an advanced DFE/FFE EDC model with automatic coefficient calculation based on MMSE criterion, suitable for designing systems deploying EDC-based receivers such as multimode 10GBase-LRM and singlemode ITU G.959.1. New precoder and BER models for DQPSK modulation makes OptSim 4.7 a suitable framework to study next-generation high-speed DQPSK systems as a serial option for 100-Gigabit Ethernet.

RSoft Design Group, www.rsoftdesign.com
