Premier Products

Th 1707lwe003

Compiled by Sue Boyle

COMPONENTSTh 1707lwe003

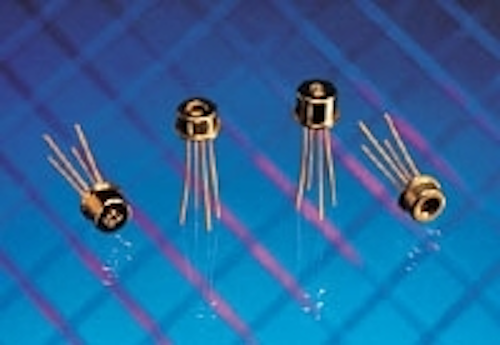

AMT8300T4 6F/ L and AMT8400T 4 6F/L re ceivers op erate from a 3-V supply and provide high-speed data handling for 800- and 1,300-nm fiber applications. The devices, which detect fiber-optic signals and convert them into electrical signals, enable small-form-factor transceivers for high-speed 2x Fibre Channel and emerging 2.5-Gbit/sec Infiniband fiber-optic networks. The AMT8300 offers minimum sensitivity of -20 dB and optical overload of better than 0 dB for 850-nm applications, and the AMT8400 features minimum sensitivity of -23 dBm and optical overload of better than 0 dBm for 1,300-nm applications.
ANADIGICS
Warren, NJ

INSTALLATIONTh 1707lwe004silo

The RSU family of fusion splicers' optimized processes and automated functions result in faster and more accurate operations. With automatic fusion current control, the RSU controls the current by processing the hot image in real time to be able to hold a constant temperature throughout the splicing process, which improves results when splicing sensitive fibers or fiber combinations with different mode-field diameters. Using overlap and pull values, the splicer calculates and uses additional overlap by measuring the differences between fiber gaps. A tunable estimation program optimized for each splice method improves the RSU's performance, making estimating more accurate.
Ericsson
Sweden

TEST EQUIPMENTTh 1707lwe005silo

The LC loopback assemblies are based on the LC interfaces that are used to test the transmission capability and re ceiver sensitivity of network equipment, providing a straightforward "go/no-go" test result. The loopback features a compact housing that is easy to handle and does not have the external loop of fiber-optic cable typical of other loopback connectors. The loopbacks are available in singlemode, 50/125 multimode, and 62.5/125 multimode versions.
Methode Electronics Inc.
Chicago

SYSTEMS & SUBSYSTEMS

The 16-, 20-, and 32-channel DWDMs encompass the C-band and L-band of the 200-GHz ITU grid. The high-port-density DWDMs complement the company's existing line of 4-, 8-, and 10-channel DWDMs. The narrow bandpass thin-film-filter devices are part of a family of growing high-performance devices that allow individual wavelengths to be combined onto and separated from a single optical fiber. The 32-channel DWDM product line incorporates thin-film-filter-band separators. A C/L-band separator combines or separates the C-band from the L-band. The main application of the band separators is to more efficiently use the 200-GHz ITU grid by opening up the L-band to additional channels. The DWDM products are available in either a low-profile cassette for card applications or a module compatible with AMP ATDU or Lucent LGX distribution hardware.
Tyco Electronics Corp.
Harrisburg, PA

The GT10-1310TR is a self-contained, single-power-supply data transceiver that provides customers with an efficient alternative to current solutions. It is optimized for OC-192/STM-64 applications. A direct modulated 1,310-nm laser module and PIN detector-based optical-receiver module convert data streams between the electrical and optical domains. A high-performance laser driver and receiver amplifier are also incorporated to provide optimum signal levels throughout the assembly. A 16:1 multiplexer and a 1:16 demultiplexer translate between OC-192/STM-64 data rates and OC-12/STM-4 rates. The unit is compact and space efficient, measuring 5x4x0.7 inches with an integrated heat-sink. All sensitive active components are hermetically sealed. The transceiver module runs on a single 5-V power supply, with all signal interfaces via twin 80-pin surface-mount connectors. Optical signals are accessed via fiber pigtails with customer-specified connectors.
GTRAN
Westlake Village, CA

The MultiWave Metro One is an intelligent optical transport solution designed to expand the broadband Internet in metropolitan area networks by breaking the cost barriers of legacy SONET/SDH solutions. The transport solution allows network operators to cost-effectively deliver wavelengths directly to customer premises. It offers carriers the benefits of the larger MultiWave Metro system but for a lower cost of entry and with reduced space and power requirements. Metro One can be upgraded to the multichannel MultiWave Metro system when needed. Metro One broadens the applications for optical networking in the metropolitan area because it is designed for locations where a single optical channel needs to be deployed, such as a business or customer site.
Ciena Corp.
Linthicum, MD
Th 1707lwe012

The RS 100 FO tabletop winding system for optical fiber features both a spooler and pay off. It can be operated from either a standing or sitting position and places functions like threading, loading, and unloading easily within arm's reach to maximize efficiency. The control panel offers digital entry of winding parameters such as package width and material length to optimize accuracy, and a stepper motor provides pitch control with digital readout in 0.0001-inch or 2.5-micron increments. Speed and tension are managed ultrasonically with a noncontract loop detector, which provides superior control at minimal tension (10-75 g). The system is capable of 600-fpm speeds on a 6-inch core.
Progressive Machine Co. Inc.
Ringwood, NJ
Th 1707lwe011

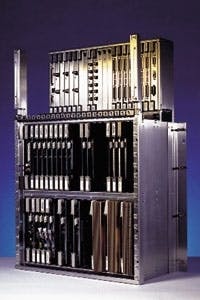

The FBX-Access system combines SDH transport and traditional digital-loop access functionality into a single platform. The platform supports copper, fiber, and radio-network infrastructures, giving service providers true mulitservice, multitechnology SDH to handle current and future network requirements. Its modular design allows providers to incrementally increase their capacity for new service offerings.
Fujitsu Network Communications Inc.
Richardson, TX

COMPONENTS

The PTX10A is a 10-Gbit/sec differential-output receiver assembly for applications in 10 GbE receivers. It couples a high responsivity, front-illuminated PIN photodiode with a 2,000-V/A differential-output transimpedance gain stage on a single, hybrid, optical subassembly. The proprietary PIN diode is designed to provide high responsivity from 700 to 1,650 nm in a single die. The assembly comes configured as a 5x1-mm ceramic carrier with multimode-fiber input and dual coplanar waveguide outputs for easy integration into other receiver or transceiver modules.
Picometrix Inc.
Ann Arbor, MI

The SwitchingFilter SF100 and SF200 products are optical add/drop multiplexer systems designed for applications where dynamic channel multiplexing and demultiplexing are required. The systems are both available on the ITU grid at channel spacing of 100 GHz and 200 GHz, in channel configurations of four to 40. The SF100 incorporates the company's MultiFiber and FiberFilter components for demultiplexing and multiplexing in 100-GHz channel spacings that enable the dynamic switching of wavelengths based on the user's individual requirements. The products feature a patented fused fiber Bragg grating technology that delivers flat passband and low insertion loss, while maximizing temperature ranges from -40°C to +85°C.
Arroyo Optics
Santa Monica, CA

This family of singlemode and multimode fiber-optic adapter products provide twice the density of SC fiber adapters, accommodating 24 duplex fiber connectors in the same amount of space occupied by 12 SC fiber ports. The family consists of an individual adapter, an adapter in a keystone package, and a six-pack modular panel. The keystone package adapters fit into modular network patch panels and faceplates. With a typical insertion loss of <0.3 dB, these adapters are ideal for use in demanding fiber-optic networks and fiber-to-the-desk applications.
KRONE Inc.
Englewood, CO

INSTALLATIONTh 1707lwe009

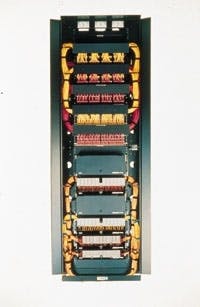

NETFRAME is a modular rack system that can be configured to meet current and future network cable-management requirements. The system includes deeper channels and modular D-rings for vertical cable management, metal hinged covers, top bend-radius control channels, and assembly hardware. It provides high-capacity cable management for a large number of crossconnecting hardware and equipment. Metal hinged vertical covers are included to allow easier access to cable.
Panduit Corp.
Tinley Park, IL
Th 1707lwe010

The FiberStrip 7030 machine was designed for stripping buffers and/or coatings from glass fibers with the highest possible quality and repeatability. Light and portable, the FiberStrip 7030 is well suited for field use, although it is equally well suited for high production use in a factory environment and serves as a companion to fiber cleavers and fusion splicers. It overcomes the variability in strip quality that is typical of manual stripping methods, with features such as the precision die blade and centering system, adjustable temperature heating, dwell-time system, and the rate-controlled stripping system. Special grippers are available for use with jacketed cables and an adapter is available to accept more popular fusion splicer fiber holders on the market.
Schleuniger Inc.
Manchester, NH

NetClearGTO from Ortronics and Berk-Tek, an Alcatel company, is engineered to optimize signal-to-noise ratio to deliver maximized dynamic and static performance, high channel capacity, and throughput for real-world networks. All components are precision matched to provide a clear, balanced transmission signal. All patch cords use traditional round-cable construction and feature impedance-matched components. The NetClearGTO fiber-optic solutions are engineered for end users that demand high-speed performance and enhanced bandwidth guaranteed in their horizontal and backbone fiber-optic structured cabling system and fiber-to-the-desk. It guarantees performance beyond the IEEE and ATM Forum distance limitations for standard multimode fiber-optic cable supporting Gigabit Ethernet, Gigabit ATM, and 622-Mbit/sec ATM.
Ortronics
New London, CT

The TRA-BOND F123LV is a rigid two-part epoxy system for numerous fiber-optic applications. The low-viscosity, fast-curing material has been used for bonding fiber-optic bundles, potting glass fibers, and terminating single and multimode connectors. At a cure temperature of 100°C, the epoxy system will cure in 5 min, while at 150°C, the cure time is 1 min. The three-step color change ensures that the material is completely mixed and cured. High strength and impact resistance bonds can be formed to material such as glass, ceramics, metals, and many plastics. If the viscosity of the material is not suitable to your needs, the company also offers other viscosity variations of the material to match your requirements.
Tra-Con
Bedford, MA

TEST EQUIPMENTTh 1707lwe013

Each LDM-4604DFB module has four butterfly mounting sockets that are hardwired to a standard DFB laser-pin configuration. Up to four modules and 16 lasers can be mounted in one LDM-4616 chassis. Each socket provides electrical connectors for laser drive current, photodiode feedback, TE cooler current, thermistor sensor signals, and case ground. The modules can be mixed with pin-configurable mount modules for mounting pump lasers in the same chassis. This modular approach gives greater flexibility to mix package types or leave space in the mount chassis tray for other components. Rackmount slide rollers allow easy access to the entire mounting tray, simplifying module replacement as well as laser configuration and replacement. Other features include fiber-management spools and interchangeable fiber-optic connectors.
ILX Lightwave
Bozeman, MT
Th 1707lwe007

The Model D510 T1 test set is a handheld, easy-to-use field-rugged test set intended for the installation and maintenance technician to analyze and correct common problems arising in T1 networks. A companion to the D510 test set is the D560 noninvasive digital probe, which enables nonmetallic, nonintrusive access to T1 carrier lines for testing purposes. The D510 test set provides for complete performance monitoring, including bit-error-rate testing, DS-1 and DS-0 frequency and level testing, and audio monitoring. The D560, with the D510 digital test set, makes in-service testing easier by reducing the probability that service will be interrupted.
Wilcom
Laconia, NH

These ribbon-fiber test kits are designed for ribbon-cable installation and maintenance and present a testing solution for ribbon fiber in telecom networks. The kits are compatible with the FTB-300 Universal Test System and its OTDR modules. They include a 1x12 optical-switch module and accessories such as a cleaver, stripper, and cleaning kit. Also available is a temporary ribbon joiner in test kits that join bare fibers from the OTDR test setup to the fibers under test, enabling efficient testing on bare fibers.
EXFO
Canada

The FTB-5500 PMD analyzer is a critical testing tool for telecom-related companies working with high data rates. PMD limits transmission quality, often referred to as the bit-error rate. With the deployment of a 10-Gbit/sec system and 40-Gbit/sec data rates, characterizing PMD becomes a necessity over installed or even new fiber. The FTB-5500 PMD analyzer measurement range covers 0.05 psec to 200 psec. The module uses field-oriented interferometric technology to rapidly and accurately characterize the PMD of any optical link over a 50-dB dynamic range. No communication is required between the handheld polarized light source and the lightweight platform. The software is easy to use and beginners can use the one-button testing capabilities with the auto-range function to determine the most suitable scanning range for accurate measurement. The multiple measurement and auto-naming file storage units mean the user can characterize the fiber over different periods of time without manipulation.
EXFO
Quebec City, Canada

LITERATURETh 1707lwe008silo

The History of Fiber Optics is available on CD-ROM and video and provides an oral and pictorial view of the evolution of fiber optics from optical theory in the 19th century to current DWDM systems.
The Light Brigade
Kent, WA
Th 1707lwe006

The pamphlet "Ten Tips for Getting the Best Performance for Photocurable Adhesives" features performance tips that can increase throughput and reliability when using photocurable adhesives. Adhesives are essential for many high-tech assembly operators. Important equipment checks include choosing the correct lamp, measuring output with radiometer, and finding the optimum position for the lamp. There are also tips on choosing the right adhesive formulation for the application (UV, visible light, or dual cure).
Ablestik
Rancho Dominguez, CA
