Anritsu intros stressed eye measurement suite

JANUARY 7, 2008 -- Consisting of stressed eye measurement control software, stressed eye transmitter, and optical receiver, the suite supports stressed receiver conformance to ensure products are IEEE802.3-2005 compliant.

Th 270344

JANUARY 7, 2008 -- Anritsu (search for Anritsu) today introduced a Stressed Eye Measurement Suite for its MP1800A series of Signal Quality Analyzers that offers what the company claims is industry-leading repeatability for measuring the average output power level difference (OMA), extinction ratio, and Vertical Eye Closure Penalty (VECP) of optical signals. The hardware and software together provide designers and manufacturers of 10GBASE-L/10GBASE-E optical modules and transmission equipment with an instrument that reduces measurement times and increases efficiency.

Consisting of stressed eye measurement control software, stressed eye transmitter, and optical receiver, the suite supports stressed receiver conformance to ensure products are IEEE802.3-2005 compliant. Anritsu says the configuration creates excellent reproducibility because it eliminates the need to capture data under various measurement environments using different connection cables at numerous ambient temperatures.

OMA, extinction ratio, and VECP measurements can be made with a power penalty of ± 0.3 dB, ensuring precise measurements, when the MP1800A's auto-calibration function is used. The transmitter supports output of both 1310- and 1550-nm wavelengths, and the control software supports power penalty tests, jitter tolerance margin measurements, and jitter sweeps for jitter tolerance GO/NO GO checks, Anritsu says.

The measurement suite is designed to work with an MP1800A analyzer configured with a built-in synthesizer, pulse pattern generator, and error detector. In addition, the analyzer outputs a high-stability, high-quality, optical signal for use as a reference light source. Crosstalk of optical modules can be evaluated from both optical and electrical interfaces simultaneously by using the MP1800A multi-channel configuration.

The MP1800A Signal Quality Analyzer series combines a Pulse Pattern Generator (PPG) and Error Detector (ED) in a single chassis to provide bit error rate and quality analysis of digital signals from 100 Mbits/sec up to 12.5 Gbits/sec, say company representatives. They note that the modular design of the MP1800A series offers a flexible, cost-effective option for performing measurements at the ideal bit error rate.

The MP1800A has a base price of $46,500. Delivery is eight weeks ARO.


Visit Anritsu Corp.

Learn more about the test and measurement industry at Lightwave's Test & Measurement Resource Center.Th 270344

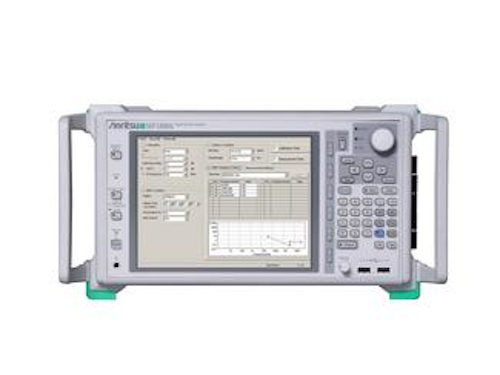

The suite supports stressed receiver conformance to ensure products are IEEE802.3-2005 compliant.
