10 Gb/s InGaAs High-Sensitivity Limiting Optical Receiver

Shared User Prbd11ac0401cf4bab826c3da9f5aeb28e

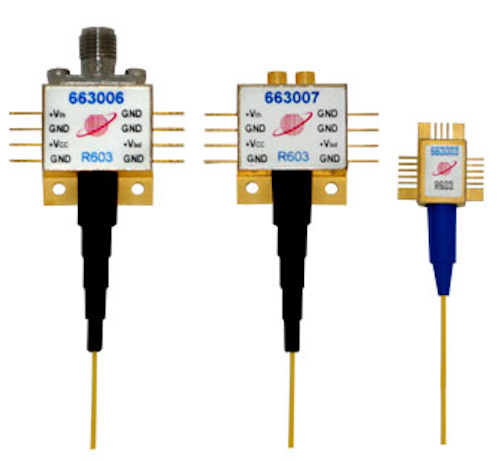

The DSC-R603 is a high-gain PIN + Transimpedance + Limiting amplifier ideally suited for digital applications up to 13 Gb/s. The R603 offers extremely high differential conversion gain of 9,000 V/W, high sensitivity of -20dBm, optical overload of +4dBm, and very low power dissipation of 170mW. The R603 is available in three package styles: single-ended K-connector, differential GPPO, and a miniature surface mount package with CPW (coplanar waveguide) RF outputs. The R603 utilizes Discovery's high-reliability InGaAs photodiode technology.

Salient Features:
High differential conversion gain of 9,000 V/W
High Responsivity at 1310nm, 1550nm & L-band
850nm MMF versions available
Sensitivity of -20 dBm at 10 Gb/s, 1550nm
Optical overload of +4 dBm at 10 Gb/s
External decision threshold adjustment
K-connector, GPPO or surface mount package options
Very low power dissipation of 170 mW
Low optical PDL @ 1550nm (typically 0.05dB)
Meets GR-468 reliability standard

Applications:
10 Gb/s SONET/SDH/Ethernet Intermediate Reach
Digital applications up to 13 Gb/s baud rate
High sensitivity/wide dynamic range digital applications
