TruePON Testers for use in G-PON, XGS-PON, and hybrid systems.

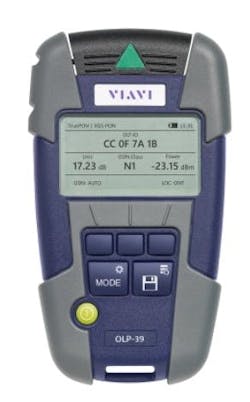

The new OLP-39 TruePON testers from VIAVI Solutions are the latest addition to the popular SmartPocket V2 family of pocket-sized test solutions. Designed for fiber technicians working in the Last-Mile of FTTH deployments, the new OLP-39 is the industry’s first wavelength selective Passive Optical Network (PON) power meter which has been enhanced with TruePON data analysis and enables simultaneous measurement of GPON and XGS-PON PON-ID.
TruePON allows the OLP-39 to read the OLT-ID carried within the downstream PON-ID data. This ensures that technicians have the right drop terminal and confirms that the drop fiber is connected back to the correct OLT port. TruePON information is also attached to stored measurement results to provide an audit trail / birth certificate which documents power level(s) and OLT connectivity at time of install.
Key Benefits
- Supports co-existence of G & XGS-PON for migration to 10G services
- TruePON analysis leverages PON-ID information to ensure more right-first-time installations and to reduce fault-finding times.
- By ensuring correct OLT port connectivity, users will reduce fault escalations, and troubleshooting expenses and avoid install abandonments due to borderline installs
- Allows technicians to ensure whether the end-to-end optical loss of the PON is within specification before proceeding with an installation.
- Confirms when optical loss is out of specification by providing the information to support troubleshooting or to justify a trouble/fault ticket escalation.
- the patented ONT detection enables a 1:1 assignment of OLT port and ONT serial number
Key Features
- OLP-39 provides the industry’s first wavelength-selective power meter with PON-ID capabilities in a compact form factor that can easily fit in a technician’s pocket.
- TruePON Analysis and In-service Insertion Loss
- Detects the OLT-ID for both G-PON and XGS-PON by reading the PON-ID data
- Detects ODN class and enables in-service insertion loss measurement.
- Extracts specific data carried in the G-PON & XGS-PON PON-ID standardized by ITU-T G.984.3 Amendment 3. and ITU-T G.987.3 Amendment 1
- ONT Detection (patent pending)
- Identifies the serial number of the ONT to be measured
- Identifies the ONT type, ONT-ID and the ONT status
- Single test port connection for dual wavelength measurement
- Simultaneous power level measurements for both G/E-PON & XGS-PON/10G-EPON services
- Storage for over 1000 test results, PC download capability and Bluetooth Low Energy to sync results via Mobile Tech App to StrataSync cloud
Applications
- Measuring optical power levels for both G/E-PON and XGS-PON/10G-EPON services
- Detecting information on OLT-ID
- Detecting information on ONT serial number, ONT-ID, type and status
- Multi-service PON deployment and installs
- Network Build and Maintenance for FTTH
Products
- The OLP-39G has a single-mounted SC adapter providing simultaneous selective power measurement and TruePON PON-ID data analysis of G-PON (1490 nm).
- The OLP-39X has a single-mounted SC adapter providing simultaneous selective power measurement and TruePON PON-ID data analysis of both G-PON (1490 nm) and XGS-PON (1577 nm) wavelengths.
