Optical Modulation Analyzer systems

Oct. 22, 2021
High-performing and flexible OMA system that supports single and dual polarization PSK and QAM formats, visual signal analysis and performance parameter measurements including EVM, BER, bias errors and more.

In partnership with Tektronix, we bring you a high-performing and flexible OMA system that will meet your requirements today and into the future.

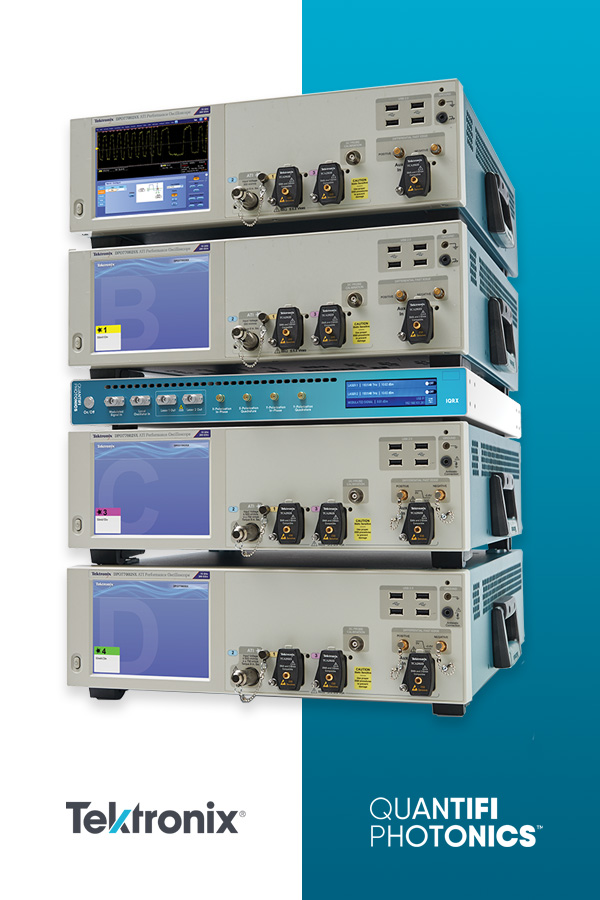

With the market-leading performance of Quantifi Photonics’ IQRX coherent receiver and the scalable architecture of Tektronix’s high-performing oscilloscopes, you’ll get the most out of your investment. Use the stack as a single 70GHz OMA system, or use it as four independent oscilloscopes.

Whether you are working with 100G coherent transceivers or 1 Terabit long haul communication systems, our OMA can be configured to suit your exact requirements.

  • Supports single and dual polarization PSK and QAM formats
  • Visual signal analysis using constellation and eye diagrams
  • Performance parameter measurement including EVM, BER, Bias errors and more

High-performance, low-noise coherent receiver

IQRX™ is the gold standard coherent receiver with market-leading performance. It is designed and built using the highest performing discrete fiber optic components to provide superior fidelity measurement of coherently modulated signals.

Full characterization of coherent modulation formats

Complete coherent signal analysis for polarization-multiplexed QPSK, QAM, differential BPSK/QPSK, and other advanced modulation formats.

Dual polarization measurement

IQRX houses polarization selective hardware to characterize polarization multiplexed signals. LO input, signal input and internal laser outputs all use polarization maintaining (PM) fiber for the highest versatility.

Built-in narrow linewidth tunable laser

IQRX comes with a built-in narrow 25 KHz instantaneous linewidth laser, making it ideal for coherent modulation formats that require high phase stability.

Multi-system configuration

Simultaneously displays data from multiple OMAs at same or different wavelengths, simplifying multi-channel measurements.

Superchannel measurement made simple

Superchannel configuration allows you to define number of channels, channel frequency, and channel modulation format.
