Directed Energy Inc. introduces digitally controlled pulsed, quasi-continuous wave, and continuous wave benchtop laser diode driver/current source

January 9, 2003--Directed Energy Inc. (DEI), has introduced the PCX-7410 benchtop instrument driver for laser diodes, laser diode bars, and arrays for pulsed, Quasi Continuous Wave (QCW) or Continuous Wave (CW) modes.

Jan 9th, 2003
Th 115361

January 9, 2003--Directed Energy Inc. (DEI), developer of advanced laser diode drivers, pulse generators, and RF semiconductors, has introduced the PCX-7410 benchtop instrument driver for laser diodes, laser diode bars, and arrays for pulsed, Quasi Continuous Wave (QCW) or Continuous Wave (CW) modes.

The PCX-7410 diode driver/current source delivers current pulses variable from 10 mA to 10 A, pulse widths variable from 50 nanoseconds to 500 milliseconds with rise times < 30 nanoseconds, and pulse repetition frequencies variable from single shot to 100 KHz (1 MHz when externally triggered) and CW. The output polarity of the PCX-7410 is user-selectable via the front panel or computer interface, accommodating both common anode and common cathode laser diodes, explain company representatives.

The PCX-7410 provides both pulsed/QCW and CW (DC) outputs. It can serve as a CW driver at currents from 10 mA to 5 A, and as a pulsed/QCW driver at currents from 10 mA to 10 A. Furthermore, the output may be biased to any CW current from 10 mA to 5 A, then pulsed above this bias current at up to 10 A maximum.

For automated applications, complete control of the driver is provided through both an RS-232 and a GPIB computer interface. Up to five system configurations may be stored in internal non-volatile memory, providing instant recall of frequently used configurations.

"The PCX-7410 offers the unique capability of both pulsed (QCW) and CW operation in a compact, benchtop instrument," asserts Ron Sherwood, president of DEI. "With a pulse width range of 50 ns to DC, and maximum output power approaching 200 W, it sets a new standard in instrumentation laser diode drivers."

The power and versatility of the PCX-7410 make it an ideal choice for applications such as diode pumping of solid state lasers, laser diode and LED characterization and testing, and laser systems R&D.

For more information about Directed Energy Inc. (Fort Collins, CO), visit the company's Web site at www.directedenergy.com.

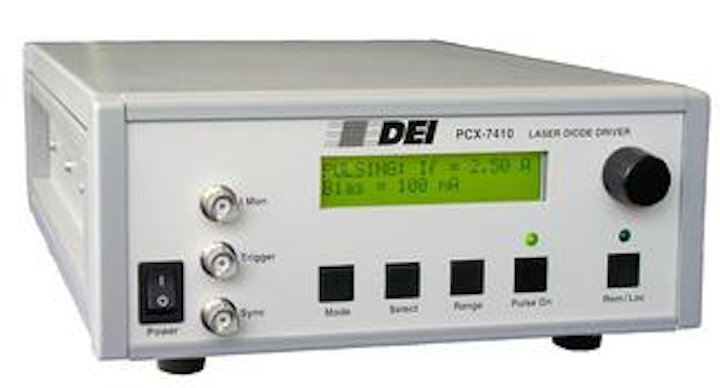

The PCX-7410 benchtop instrument driver for laser diodes, laser diode bars, and arrays for pulsed, Quasi Continuous Wave (QCW) or Continuous Wave (CW) modes
