Anritsu debuts new optical component test system

October 3, 2002--Anritsu Co. recently introduced the ME7894A, an optical component test system that has the performance and measuring speed necessary to evaluate optical components used in WDM transmission systems operating at the C- and L-bands.

Oct 3rd, 2002
Th 104541

Anritsu Co. recently introduced the ME7894A, an optical component test system that has the performance and measuring speed necessary to evaluate optical components used in WDM transmission systems operating at the C- and L-bands. Comprised of an advanced tunable laser source (TLS), optical power meter, high sensitivity sensor, and control software, the ME7894A test system features excellent dynamic range, claim company representatives, allowing it to conduct accurate analysis of optical filters, couplers, isolators, and splitters during R&D and manufacturing.

With a measurement wavelength range of 1510 nm to 1640 nm, the ME7894A provides full coverage of both the C- and L-bands. The ME7894A can conduct highly accurate and detailed measurements of both bands because it features a dynamic range of >50 dB. Such high dynamic range is accomplished because the MG9541A TLS features 70-dB OSNR and the MA9332A high sensitivity sensor can accept either connectors or bare fiber coupling.

The MG9541A TLS also features a high power output that allows a multiple branching element to be added so several devices under test (DUTs) can be characterized with a single TLS. Not only does this reduce testing costs associated with batch component measurement, it improves accuracy and testing efficiency.

Adding to the testing efficiency of the ME7894A is its high-speed measurement capability, say company representatives. Measurements can be made in <10 sec when the number of measured data points is 5001 at a 20-nm wavelength range and 4-pm wavelength resolution. The speed is achieved in part because of the control software, which allows the ME7894A to be automated and controlled via a PC. With the control software, measurement conditions can be input to a settings window on the PC and results displayed graphically on the screen. A dual-channel AUTO measurement feature that allows the ME7894A to automatically measure up to two channels simultaneously and display the results graphically via the PC is also part of the control software. This is ideally suited to the application of simultaneously measured transmitted and reflected light.

For more information about Anritsu Corp. (Richardson, TX), visit the company's Web site at www.us.anritsu.com.

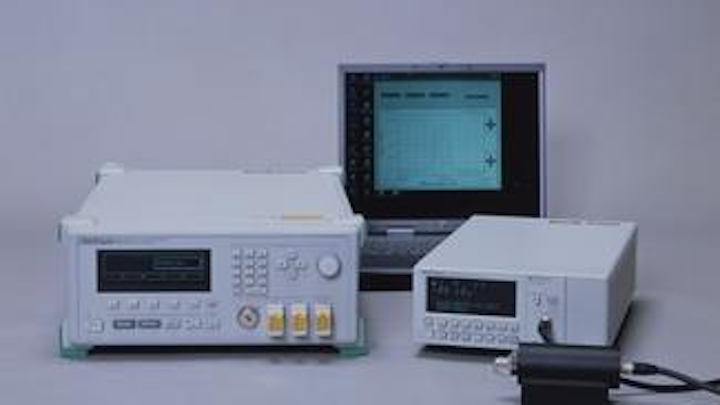

The Anritsu ME7894A optical component test system
