Arden Photonics FGC-GA measures multifiber V-groove array geometry, fiber alignment

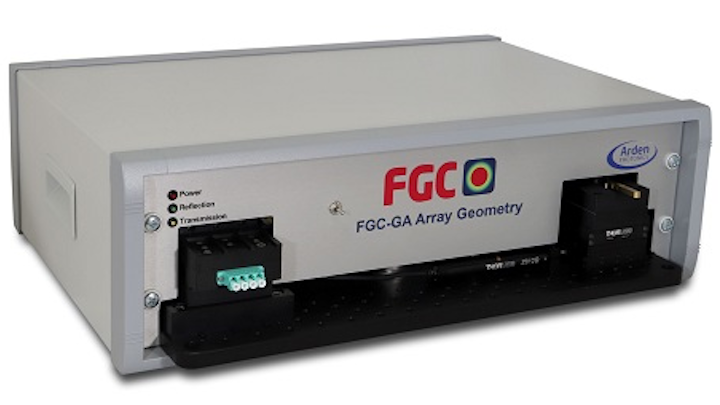

Arden Photonics has the FGC-GA, an automated instrument for measuring the geometry and fiber alignment of multifiber V-groove arrays. The system measures the X and Y offset as well as the core-core pitch of optical fibers over a 15-mm range via transmitted light. Image stitching is then used to provide a full image of each core.

Content Dam Lw Online Articles 2019 04 Lwarden041819

Arden Photonics has the FGC-GA, an automated instrument for measuring the geometry and fiber alignment of multifiber V-groove arrays. The system measures the X and Y offset as well as the core-core pitch of optical fibers over a 15-mm range via transmitted light. Image stitching is then used to provide a full image of each core.

The image enables technicians to evaluate the full width of the array. The FGC-GA also can use reflected light in its darkfield illumination system to evaluate the quality of the V-groove blocks prior to fixing the fibers in place. The system features customizable templates to measure a wide range of fiber configurations, Arden says. The system supports a 1200-um field to enable imaging of several cores simultaneously.
