EPIQ™ benchtop instruments

Oct. 22, 2021
High-performance benchtop instruments offering optical and electrical test capabilities with powerful and intuitive software.

IQTX - Coherent Modulation Transmitter

Generating and controlling phase modulated optical signals is easy with the IQTX. The IQTX is referred to as a ‘Golden’ reference optical signal source because of its high repeatability and reliability.

Its high bandwidth of 40 GHz ensures high quality optical signal generation, making it the ideal optical signal source for coherent communications applications.

  • Choose from 11 GHz, 20 GHz, 23 GHz or 40 GHz of bandwidth
  • High repeatability and reliability of optimized optical signals
  • Perfect for M-QAM, M-PSK and custom modulation formats
  • Capable of supporting Baud rates beyond 64 GBaud

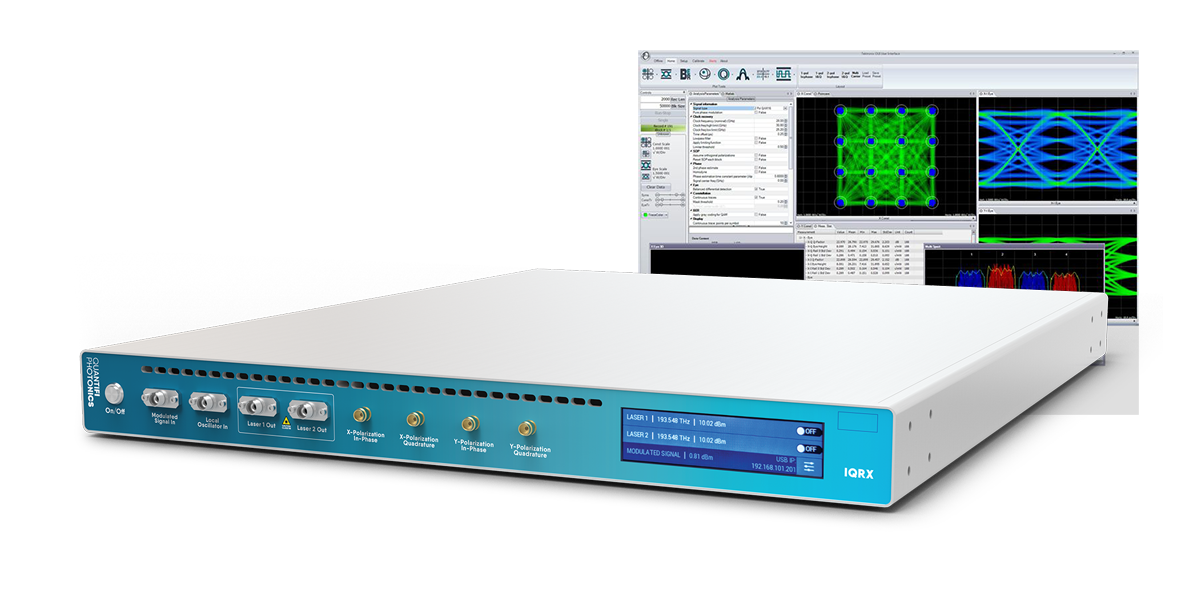

IQRX - Coherent Optical Receiver

The IQRX is a “gold standard” coherent receiver for the measurement of coherent modulation formats such as QPSK, 64QAM and OFDM.

Its high-bandwidth, low-noise architecture makes it ideal for high-quality, low-distortion coherent signal measurement.

With two built-in lasers and convenient touchscreen LCD front panel control, the IQRX delivers quick and reliable measurements.

Scope - Sampling Oscilloscope

EPIQ-Scope is a compact and versatile 4-channel 25 GHz bandwidth sampling oscilloscope suitable for a wide range of applications.

With industry-leading 16-bit resolution, 60 dB dynamic range and a sequential sampling rate of 1 MS/s, it enables the quick formation of waveforms, eye diagrams and histograms for cost-effective and efficient measurement.

Swept Laser Source - EPIQ-Laser

The EPIQ-Laser uses a high quality grating paired with state-of-the-art micro-electro mechanics tuning mechanism for quick, voltage-controlled wavelength tuning and exceptional reliability.

With 0.01 dB power stability and 400 nm/s high-speed scan rate, it is the perfect time-saving tool for R&D applications as well as production testing.

OMA - Optical Modulation Analyzer

In partnership with Tektronix, we bring you a high-performing and flexible OMA system that will meet your requirements today and into the future.

With the market-leading performance of Quantifi Photonics’ IQRX coherent receiver and the scalable architecture of Tektronix’s high-performing oscilloscopes, you’ll get the most out of your investment. Use the stack as a single 70GHz OMA system, or use it as four independent oscilloscopes.

Whether you are working with 100G coherent transceivers or 1 Terabit long haul communication systems, our OMA can be configured to suit your exact requirements.

  • Supports single and dual polarization PSK and QAM formats
  • Visual signal analysis using constellation and eye diagrams
  • Performance parameter measurement including EVM, BER, Bias errors and more
