MaxLinear: Rushmore

MaxLinear's Rushmore is a 1.6 Tbps PAM4 DSP SoC purpose‑built for AI and cloud data center interconnects, enabling 1.6T optical transceivers and active optical cables for both scale‑out and scale‑up fabrics.
Feb. 12, 2026
Add Us On Google
www.maxlinear.com

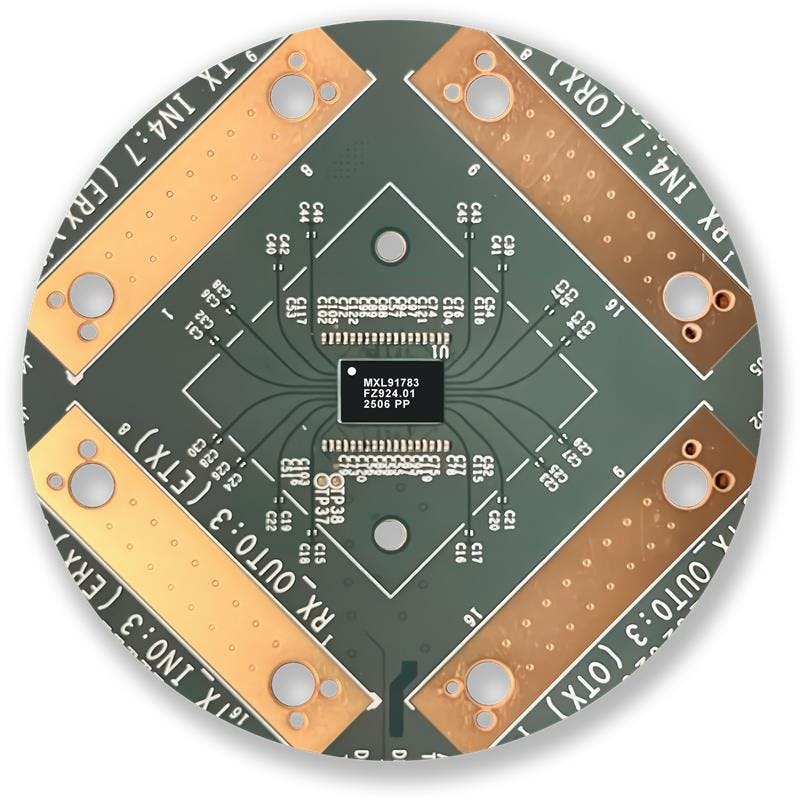

69820eabeb46e1bcc5cdfd3c 13 Rushmore Evk
4

As an integrated 8 lane, 200G/lane PAM-4 DSP, MaxLinear’s Rushmore enables hyperscale cloud and AI data center operators to upgrade their networks to next-generation 1.6 Tbps optical links for both scale‑out and scale‑up fabrics. By combining best‑in‑class Serdes performance in Samsung’s 4 nm process with a highly integrated, customer‑proven architecture, Rushmore not only meets customers' performance and energy targets but also provides true supply chain and geopolitical risk mitigation. Rushmore is a 1.6 T PAM4 DSP SoC purpose‑built for AI and cloud data centers. It allows customers to upgrade to 51.2T and 102.4T switch platforms, supporting rapidly growing AI/ML workloads without sacrificing performance headroom. Rushmore is backward compatible with previous-generation links and interoperates with other major DSPs on the market.

Judge’s comment: “Definitely a product that is needed in 2026 for both 800 Gbps and 1.6 Tbps.”
