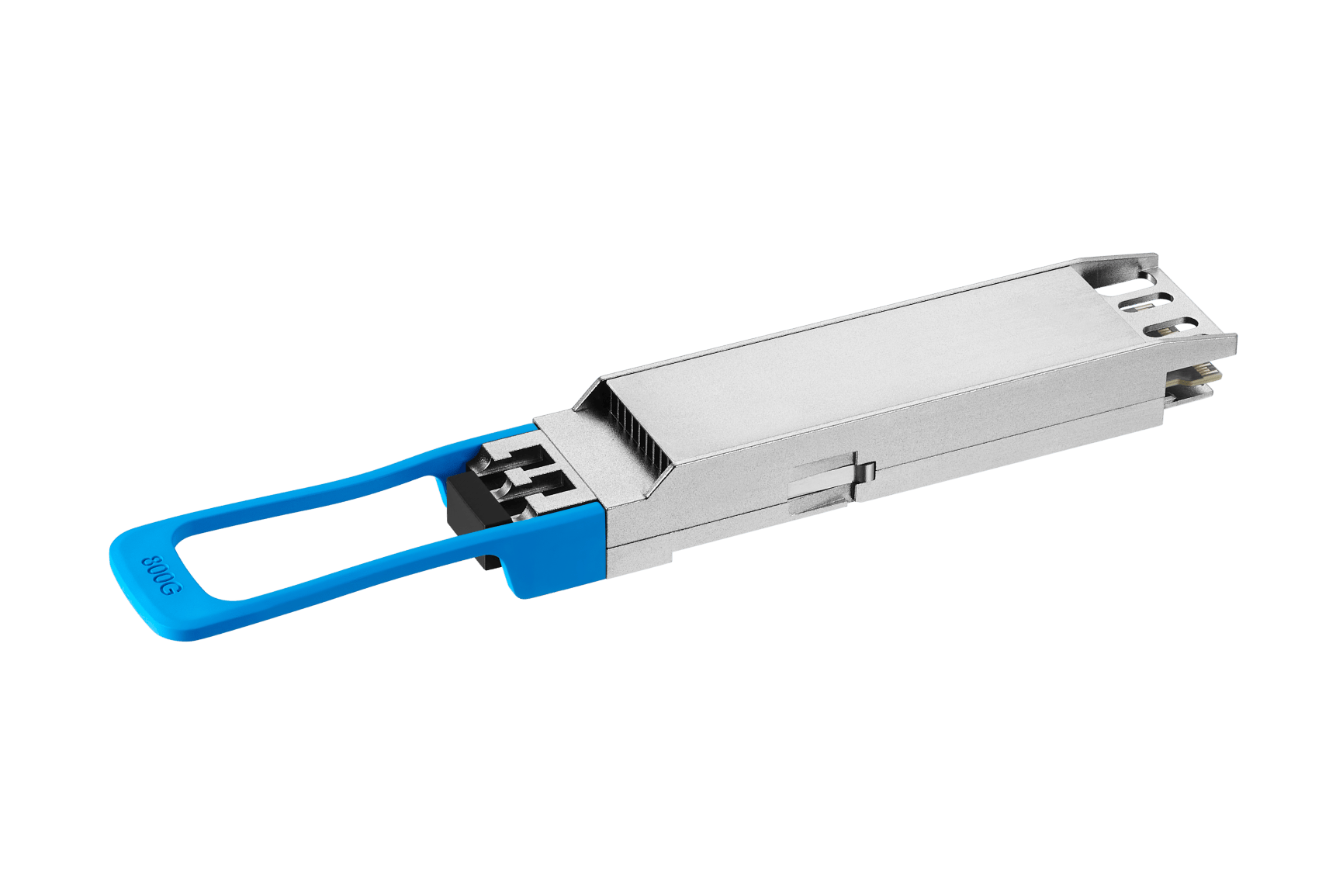

Linktel: Dispersion Managed Transceiver 800G OSFP FR4-10km

Linktel’s Dispersion-Managed Transceiver 800G OSFP FR4-10km introduces a Dispersion Management Device (DMD) to address fiber dispersion limitations. DMDs are integrated into the receiver optical path and use a self-locking algorithm to compensate for fiber dispersion and dynamically adapt to varying fiber lengths. The transceiver design is highly compatible with a standard FR4 transceiver, with only two DMDs added to support two edge-wavelength channels at 1271nm and 1331nm. It has negligible power consumption. The product has undergone extensive testing and validation on existing commercially available 800G switches, laying a solid foundation for subsequent 1.6T CWDM 10km products and higher speed 400G/lane FR4 products.

Judge’s comment: “An innovative DMD 800G-LR4 solution.”
