Product Showcase

The LX8220 is a compact 40G DQPSK optical modulator enabling 4.5×5.5" 300-pin transponders for metro applications.

1101 02lw Gigoptix
EQUIPMENT DESIGN

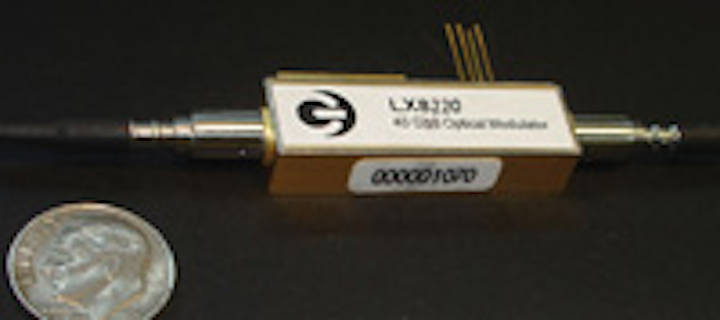

LX8220
GigOptix

The LX8220 is a compact 40G DQPSK optical modulator enabling 4.5×5.5" 300-pin transponders for metro applications. Its low drive voltage ensures low power consumption without compromising on optical performance. www.gigoptix.com
EQUIPMENT DESIGN

USB To Fiber Optic Bit-Driver
S.I. Tech

Supports USB 1.1 and 2.0 plug and play, multimode or singlemode for secure communication, remote security cameras, instruments, or other USB devices, extended-distance. EMI/RFI immunity. Order: 1.KIT #26 for complete multimode system. 11.3181/3182 for tempest version.
www.sitech-bitdriver.com

EQUIPMENT DESIGN

IntelliGain™ Optical Channel Performance Monitors C, L, CWDM, Wideband
BaySpec, Inc.

1201lwshow Bayspec100% Made-in-the-USA, BaySpec’s Optical Channel Monitors feature ultra fast sub-50 milli-second response, high compact size, and low power consumption. With over 30,000 units shipped, the ruggedized design ensures long life – now available in reduced height option <10mm! www.bayspec.com

EQUIPMENT DESIGN

Rev2 Micro-Polisher
Krell Technologies

NewrevRev2 automates connector air-polishing using a “micro-feed” feature that gradually lowers the ferrule to the polishing surface at a controlled rate. This provides superior control for fiber-denub and epoxy removal. www.krelltech.com

TEST

1201lwshow TerahertzTerahertz Technologies’ FTE-7500A OTDR
Terahertz Technologies Inc.

This US made OTDR has a generous 36dB dynamic range, a short 1 meter dead zone and an updated easy to read menu that offers quick navigation between features. www.terahertztechnologies.com

TEST AND MEASUREMENT

Optical Wavelength Meters
Bristol Instruments

1201lwshow BristolOptical wavelength meters precisely characterize the wavelength of DWDM lasers. Multi-wavelength meters measure wavelength, power, and OSNR of DWDM signals. High accuracy and reliability achieve the most meaningful test results.
www.bristol-inst.com

EQUIPMENT DESIGN

SC auto shutter connector/adapter
SANWA Electronics USA Corp.

NewsanwaSC Auto-Shutter Connector/Adapter offers perfect-fit to in-house application. Both shutters on connector and adapter are open automatically when the connector is inserted and closed when the connector is being extracted from the adapter. toyama@snwd.co.jp, rei@snwd.co.jp

EQUIPMENT DESIGN

Analog 60 GHz Receiver
u2t Photonics AG

1201lwshow U2tu2t’s APRV is an analog receiver optimized for the use in general purpose analog applications, requiring highly linear operation and high rf-output power. It is optimized for sub-band operation between 57 and 65 GHz. www.u2t.de

TEST AND MEASUREMENT

34 GSa/s Arbitrary Waveform Generator
Fraunhofer Heinrich Hertz Institute

1201lwshow FraunhoferThe world’s fastest programmable arbitrary waveform generator allows you to create output signals with conversion rates of up to 34 GSa/s and a resolution of 6 bits. Multiple units are synchronizable to fit your application. www.hhi.fraunhofer.de
