Sumix Manta-W+ Fiber Inspection Microscope

The Sumix Manta-W+ probe inspects and analyzes MPO connector endfaces in one scan and in just 4 seconds. It offers automatic, accurate multifocusing, optimal multi-illumination, and analysis of fibers performed all at once, which leaves no room for operator errors. Images of the entire ferrule, including guide holes, are saved for cleanliness control.

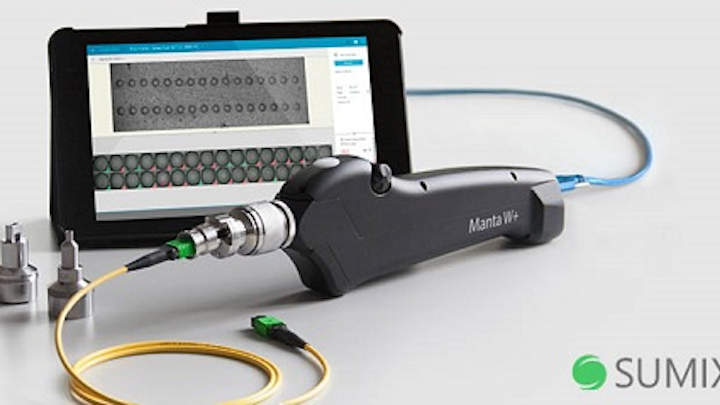

Content Dam Lw Online Articles 2019 02 Sumix Manta W Smaller
The Sumix Manta-W+ probe inspects and analyzes MPO connector endfaces in one scan and in just 4 seconds. It offers automatic, accurate multifocusing, optimal multi-illumination, and analysis of fibers performed all at once, which leaves no room for operator errors. Images of the entire ferrule, including guide holes, are saved for cleanliness control. The Manta-W+ is the first probe on the market that can show and inspect up to 96 fibers of an MPO connector at once, which dramatically decreases testing time, Sumix says.

Judge’s comment: “Great option for MTP/MPO testing; ability to check up to 96 fibers on one screen is impressive. Broad range of compatible connectors makes it an even more impressive product.”
